How To Select Tooling For CNC

Presentation on How to select tools for cnc and vmc.

Selecting the right tooling is the foundational step that dictates your entire machining cycle time, part quality, and overall production cost. Choosing a tool isn't just about matching diameters; it is a critical process engineering decision that directly links shop floor physics with Lean manufacturing metrics.

Whether you are configuring a CNC turning center or a multi-axis VMC, this structured guide will walk you through the essential variables of tool selection to achieve optimal performance.

1. Evaluate the Workpiece Material First

Before looking at tool catalogs, analyze the physical characteristics of the material you need to cut. Different material families present entirely distinct failure modes for cutting edges:

• Aluminium (ISO N): Requires sharp cutting edges, polished rake faces, and large flute valleys to handle high-speed chip evacuation and prevent Built-Up Edge (BUE).

• Steel (ISO P): Needs tough substrates and thermal-barrier coatings (like TiAlN or CVD Alumina) to handle high tangential forces and abrasive wear.

• Stainless Steel (ISO M): Known for work-hardening. Requires positive geometries and sharp edges to shear the material clean before it hardens, combined with high thermal resistance.

• Cast Iron (ISO K): Highly abrasive but produces short, powdery chips. Requires extreme flank-wear resistance, often satisfied by hard carbide grades or ceramic inserts.

2. Match the Geometry to the Operation

The geometry of the tool determines how cutting forces are distributed through the machine spindle and structural castings.

                  [TOOL SELECTION GEOMETRY]
                             │
       ┌─────────────────────┴─────────────────────┐
       ▼                                           ▼
[90° Lead Angle]                            [45° Lead Angle]
 ──► High Radial Force ($F_r$)                ──► Balanced Forces ($F_c$ & $F_r$)
 ──► Square Shoulders                        ──► General Face Milling
 ──► Prone to Chatter                        ──► Thins Chips Automatically

• For Roughing Operations: Prioritize tool strength. Choose a tool with a robust cross-section, a larger corner radius, or a high-feed geometry (low lead angle) that directs forces axially up the spindle. This allows you to maximize material removal rates (MRR).

• For Finishing Operations: Prioritize edge sharpness and accuracy. Select a tool with a smaller corner radius or a wiper insert geometry to produce a superior surface finish while minimizing tool deflection.

3. Rigidity and the "Law of Overhang"

A critical error on the shop floor is selecting a tool that is longer than necessary. As a rule of thumb, always select the shortest tool possible for the depth of the cut.

Recall the mathematical reality of tool deflection: doubling the tool’s overhang increases its deflection by 8 times ($2^3$). High deflection accelerates micro-chipping on carbide edges and causes dimensional drift.

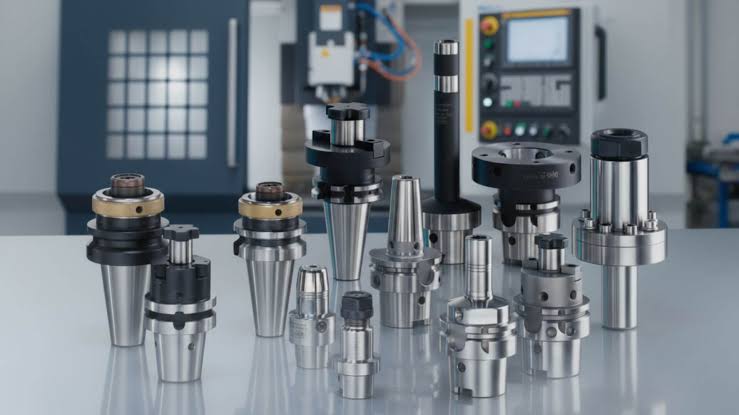

Ensure your tool holding system matches the precision of the cutter. For heavy milling, swap standard collet chucks for high-rigidity hydraulic holders, shrink-fit systems, or side-lock holders to control runout.

4. Optimize the Number of Flutes

In VMC milling operations, selecting the flute count is a direct trade-off between tool strength and chip clearance volume:

Flute Count	Strengths	Best Use Case
2-Flute	Massive chip valleys; prevents clogging.	Slotting and plunging in Aluminium.
3-Flute	Balance of core strength and chip space.	High-speed milling in non-ferrous materials.
4-Flute	Thicker core; higher structural stiffness.	General-purpose side milling and pocketing in Steels.
5+ Flutes	High feed rate capacity; minimal chip space.	High-efficiency milling (HEM) and finishing profiles.

The Lean View: Standardization of the Tool Crib

From an ACMA Lean Manufacturing perspective, tool selection extends beyond an individual program—it impacts your entire inventory system.

Apply 5S and Standardized Work: Avoid the temptation to buy a unique tool for every single feature of a part. Instead, standardize your machine carousel around a primary set of core tools (e.g., a standard 50mm face mill, a 12mm rougher, a 10mm finisher, and a standard set of taps).

By standardizing your tooling selection matrix, you drastically reduce changeover times (SMED), slash inventory costs, and ensure that your operators can run production with predictable, repeatable results every single shift.
